T3SNC-12T2500W Plate Bending Machine

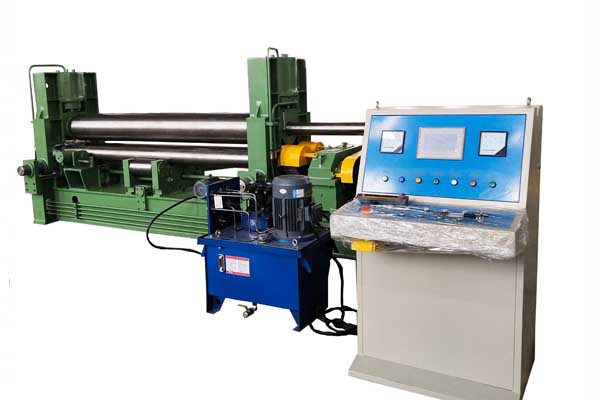

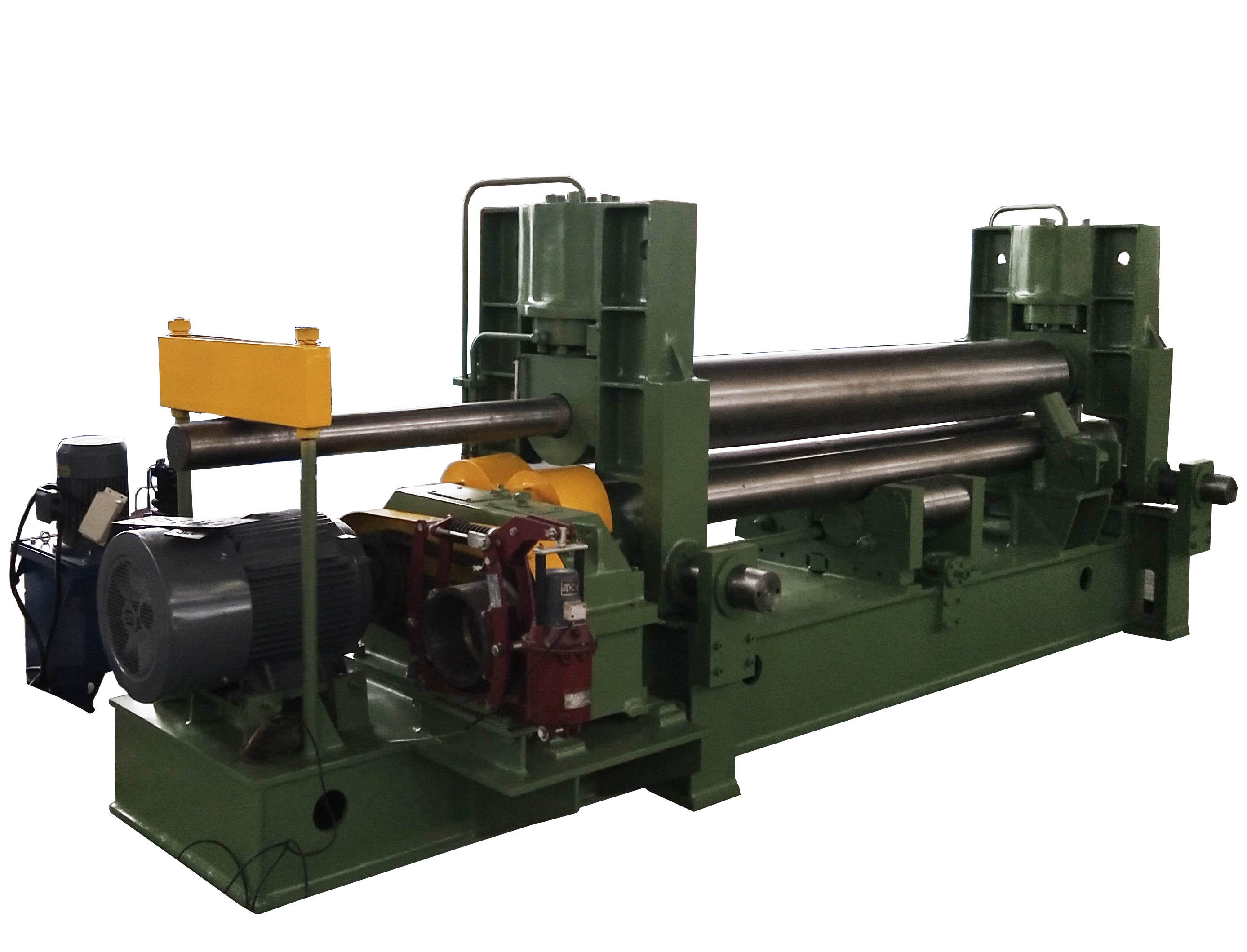

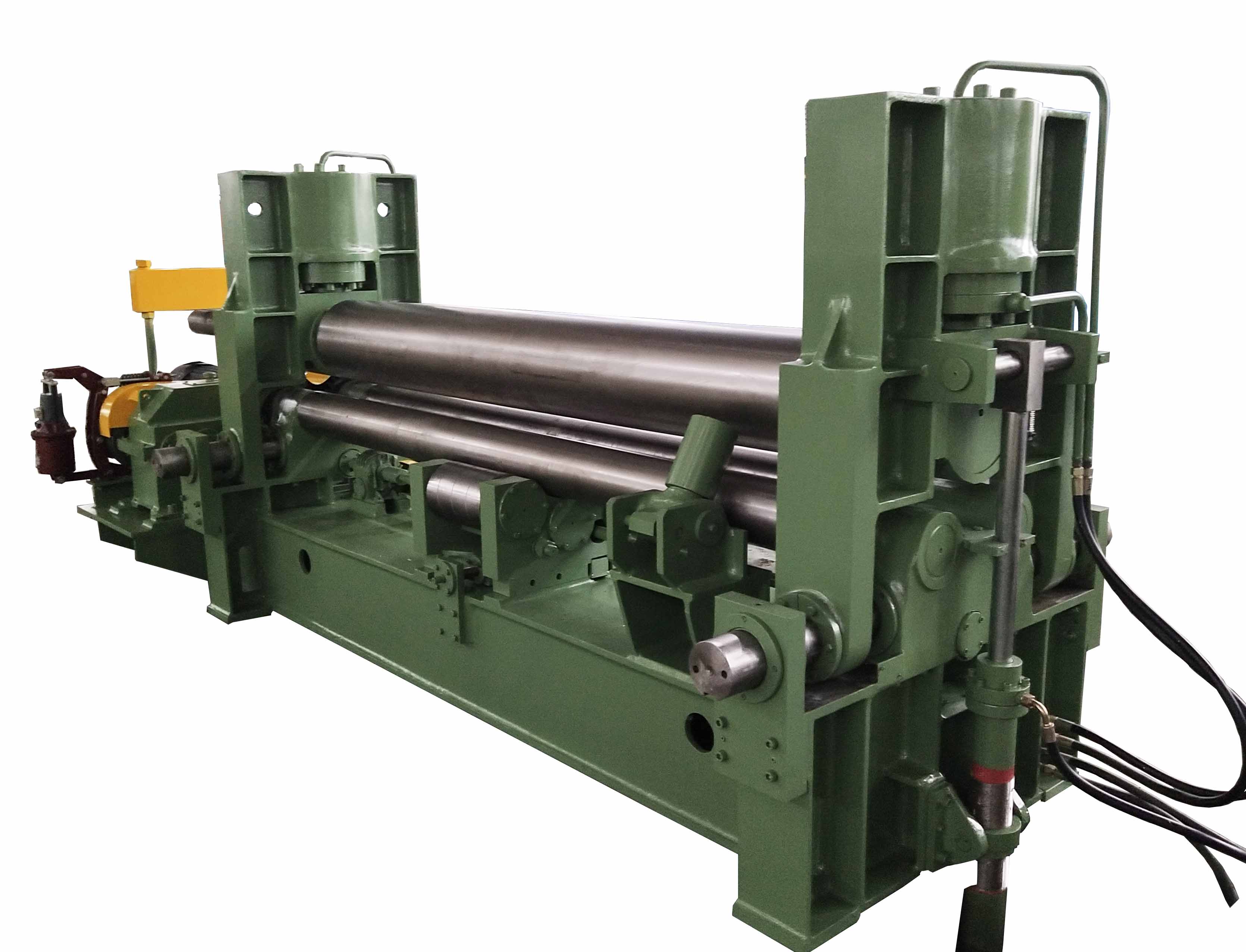

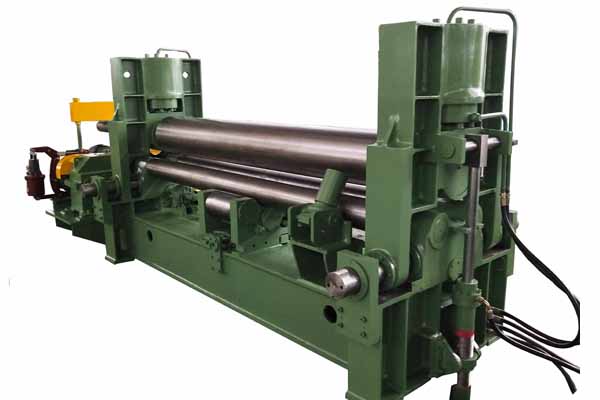

W11SNC 3-roller Plate Bending Machine is a kind of double pinch plate bending machine. The top roller is hydraulic driving. The top roller is vertically and horizontally adjustable, and the two lower rollers are fixed. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.
W11SNC-12x2500 | |||
Rated Pressing Force from Upper Roller | Ton | 75 | |
Working temperature | At natural temperature | ||
Plate yield limit | MPa | 245 | |
Max. | Thk. of bending plate | (mm) | 12 |
Thk. of pre-bending | 10 | ||
Width of bending plate | 2500 | ||
Min. rolling dia. with max.size | (mm) | 600 | |
Diameter of Roller | Upper | mm | 270 |
Bottom | mm | 150 | |
Working Rollers | Material | 42CrMo | |
Hardness | (HB) | 260-300 | |
Induction Hardened Roll | YES | ||
Roll Profile | crown | ||
Lifting Mode | hydraulic | ||
Central distance of bottom rollers | mm | 245 | |
Diameter of supporting roller | mm | 150 | |
Adjusting way of supporting rollers | motorized | ||
Rolling speed | m/min | 3.5 | |
Power character | 380V/50Hz/3phase | ||
Control System | Control way | PLC control + moving controller | |
Display of position & displacement | LCD | ||
PLC | OMRON | ||
Electrical Part System | SIEMNENS | ||
Main Power Motor | (KW) | 7.5 | |
Motor for hydraulic | (KW) | 4 | |
Motor for horizontal moving | (KW) | 1.5 | |
Hydraulic System | Max. Working Pressure | (MPa) | 19.5 |
Valve | YUKEN | ||
Seal | VALQUE | ||
Electrical & Hydraulic Protection Againts Overload | YES | ||
Construction Steel Material | Q235 | ||
Side Support for Big Sheet Metal Diameters | optional | ||
Features
▲electronic parallelism control system
▲rollers synchronization and balancing control fully electronically controlled
▲top roller hydraulic driving, can be vertically and horizontally adjustable.
▲anti-friction material in sliding area
▲instantaneous brake for rollers rotation for high safety
▲reversal side hydraulic driving
▲Mobile control panel station, with low voltage control
▲Mobile control push-buttons, convenience for operator
